How to Validate 3D Laser Scanning Data Accuracy in Toronto

 When I first ventured into the world of 3D laser scanning in Toronto, I quickly realized that the accuracy of the data collected was paramount to the success of any project. Whether it's for construction, architecture, or historical preservation, ensuring that the scanned data is precise can make or break the outcome. Over time, I've developed a meticulous approach to validating 3D laser scanning data accuracy, which I’d like to share with you.

Understanding the Importance of Data Accuracy

One of my earliest experiences involved a large-scale construction project in downtown Toronto. The project required precise measurements of an existing structure, which would be used as the foundation for a new development. At first, I was confident that my 3D laser scanning equipment was providing accurate data. However, after cross-referencing with traditional measurement methods, I discovered discrepancies that could have led to significant issues down the line. This experience taught me that verifying the accuracy of the data is not just important; it’s essential.

Step 1: Selecting the Right Equipment

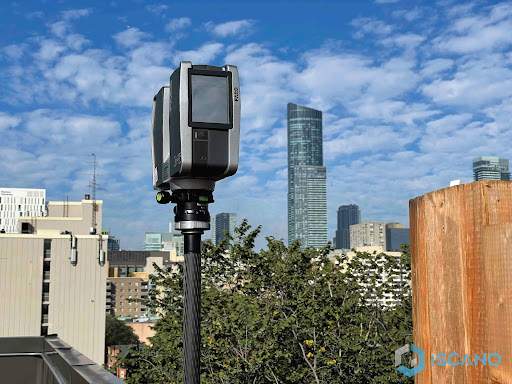

The first step in ensuring data accuracy is selecting the right 3D laser scanning equipment. In Toronto, there’s a wide range of scanners available, from handheld devices to high-end stationary units. I’ve learned that not all scanners are created equal. The key is to match the scanner to the specific needs of the project.

For instance, when working on a heritage building in Toronto’s Distillery District, I opted for a high-resolution scanner that could capture the intricate details of the structure's façade. The scanner’s accuracy was critical because the data would be used to create a digital twin for restoration purposes. Before starting the project, I thoroughly researched the scanner’s specifications, focusing on its accuracy range, point cloud density, and ability to handle complex surfaces.

Step 2: Calibrating the Scanner

Calibration is another crucial step in validating data accuracy. I remember a project in which we were scanning the interior of a historic church in Toronto. The church had numerous arches and intricate woodwork, which required precise measurements. Before starting the scan, I made sure to calibrate the scanner according to the manufacturer’s instructions.

Calibration involves setting up the scanner in a controlled environment and running a series of tests to ensure it’s operating correctly. This step can’t be skipped, as even the most advanced scanners can produce inaccurate data if they’re not properly calibrated. I also make it a point to recalibrate the scanner periodically during the project, especially if it’s being moved to different locations or if the environmental conditions change.

Step 3: Using Control Points

Control points are another vital tool in ensuring data accuracy. These are physical markers placed in the scanning area that the scanner can use as reference points. During a project at a commercial site in Toronto’s Financial District, I used a series of control points to ensure that the scanned data was aligned correctly.

After placing the control points, I performed a series of scans and compared the data against the known coordinates of the points. This allowed me to identify any deviations and make the necessary adjustments. The use of control points is especially important in large-scale projects where multiple scans need to be stitched together to create a complete model.

Step 4: Cross-Referencing Data

Cross-referencing the scanned data with existing data is another method I’ve found effective in validating accuracy. For instance, during a renovation project in Toronto’s Liberty Village, we had access to original architectural plans. After completing the 3D laser scan, I compared the point cloud data with the dimensions provided in the plans.

This step revealed some minor discrepancies, which were due to changes in the structure over time. By identifying these discrepancies early on, we were able to make the necessary adjustments before proceeding with the renovation. Cross-referencing can be done with various types of data, including CAD models, survey data, and even photographs.

Step 5: Analyzing Point Cloud Data

Once the data is collected, it’s essential to analyze the point cloud for accuracy. In my experience, this involves more than just looking at the data; it requires a deep understanding of the project’s requirements and the ability to spot potential issues.

For example, during a project in Toronto’s Entertainment District, we were scanning the interior of a theater. The point cloud data initially appeared accurate, but upon closer inspection, I noticed some areas where the data was sparse. This was due to the scanner’s angle and the presence of obstructions. By analyzing the point cloud data in detail, I was able to identify these gaps and perform additional scans to fill them in.

Step 6: Using Software Tools

Software tools play a significant role in validating and enhancing the accuracy of 3D laser scanning data. In Toronto, there are several software options available, each with its strengths and weaknesses. I’ve worked with various tools, including Autodesk ReCap, Faro Scene, and Leica Cyclone, to process and validate the scanned data.

These tools offer features like point cloud alignment, noise reduction, and accuracy analysis. For a project in Toronto’s King West neighborhood, I used software to align multiple scans and create a unified model. The software also allowed me to run accuracy checks by comparing the scanned data with reference models and control points.

Step 7: Collaborating with Experts

Finally, I’ve learned that collaboration is key to ensuring data accuracy. In Toronto, there’s a vibrant community of professionals specializing in 3D laser scanning, and I’ve had the opportunity to work with some of the best. Whether it’s surveyors, architects, or other scanning experts, getting a second opinion can provide valuable insights.

During a project in the Toronto Waterfront area, I collaborated with a surveyor to validate the accuracy of our scans. The surveyor provided precise measurements that we used to cross-check our data. This collaboration not only confirmed the accuracy of our scans but also highlighted areas where we could improve our process.

Conclusion

Validating the accuracy of 3D laser scanning data is a critical step that requires attention to detail, the right equipment, and a thorough understanding of the project’s needs. My experiences in Toronto have taught me that taking the time to validate data can save time, money, and headaches down the road. By following these steps—selecting the right equipment, calibrating the scanner, using control points, cross-referencing data, analyzing point clouds, leveraging software tools, and collaborating with experts—I’ve been able to ensure the accuracy of my 3D laser scanning projects and deliver results that my clients can trust.
